Product Description
Product Description

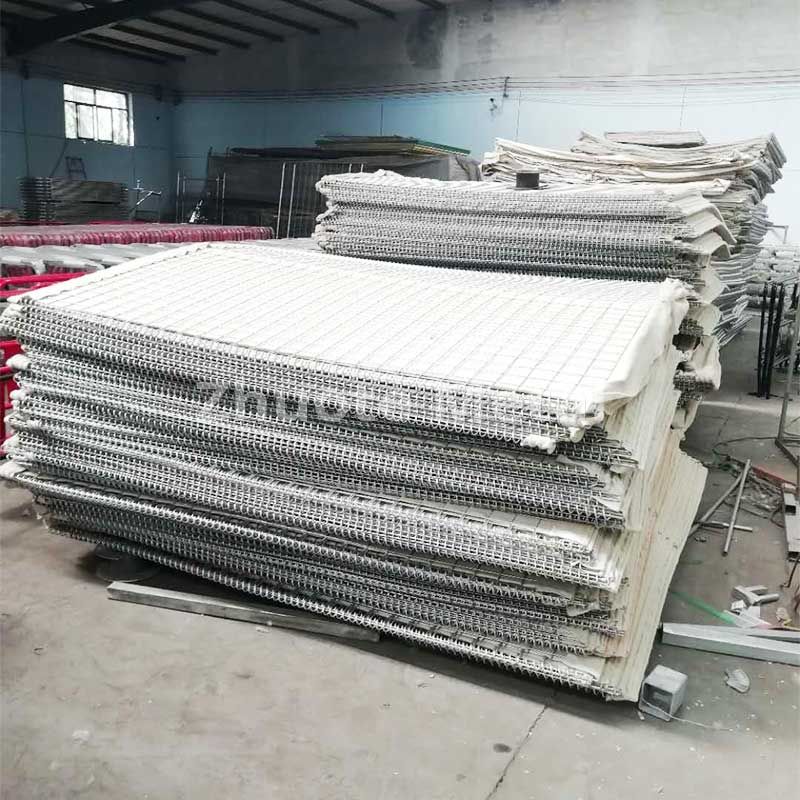

Military Defensive Barrier, as its name indicated, at the beginning, it mainly used on Military, for army protection, military fortifications, Anti-Explosion Wall and etc. It is made of Collapsible Welded Gabion Mesh and UV Protection Heavy Geotextile, The common surface treatment is Hot Dipped Galvanized before welding, HDP Galvanized after welding, and Galfan Coated. Both of them have a long using life. It has seen considerable use in Iraq, Afghanistan and Africa.
The hesco bastion is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create bastion of exceptional strength and structural integrity.
| Product Name | Hesco barrier |
| Product Type | Welded mesh |
| Material | Galvanized steel wire or Galfan/zinc-5%aluminum wire |
| Wire Diameter | 3.0-5.0mm |
| Geotextile | 250g-400g |
| Geotextile colour | sand clolor, Brown, Gray,and Military Green. |

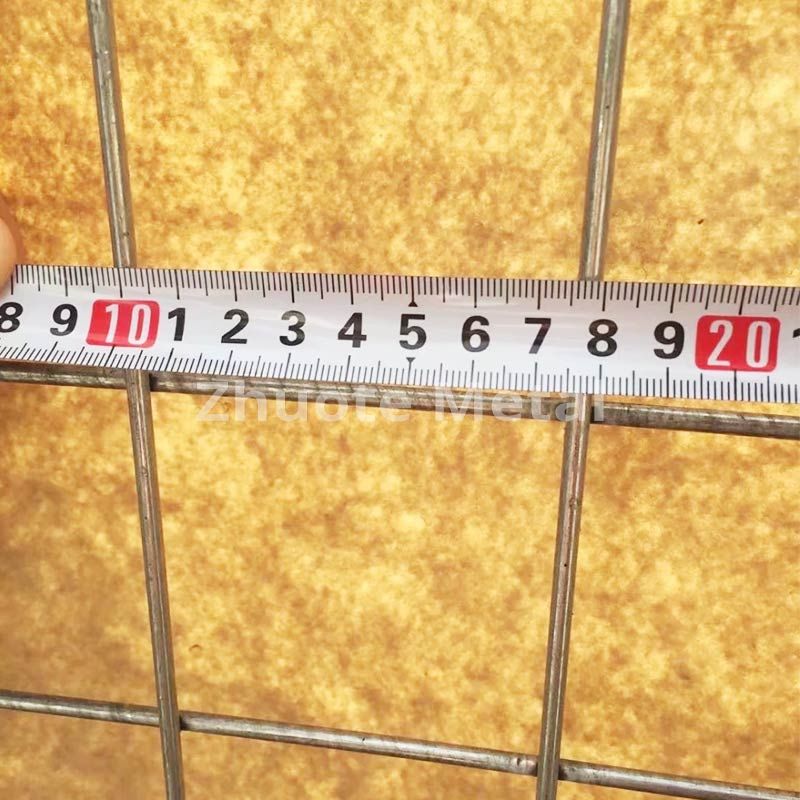

| Mesh hole | 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
| Model | Height(M) | Width(M) | Length(M) | Cells Number |
| ST-1(Mil 1) | 1.37 | 1.06 | 10 | 5+4=9cells |
| ST-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| ST-3(Mil 3) | 1.0 | 1.0 | 10 | 5+5= 10 cells |
| ST-4(Mil 4) | 1.0 | 1.5 | 10 | 5+5= 10 cells |
| ST-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| ST-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| ST-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| ST-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| ST-9(Mil 9) | 1.0 | 0.76 | 9.14 | 6+6=12 cells |
| ST-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
