Product Description
Product Description
Galvanized Field Fencing From 1050mm to 2400mm
Field Fence also calls farm fence, cattle fence, house fence, grassland fence, sheep fence. Field fence can be used with T-post and other post. It mainly include woven wire field fence, high tensile field fence, hinged knot field fence, fixed knot field fencing, galvanized field fence, welded wire field fence, chain link field fence.
Field fence style:

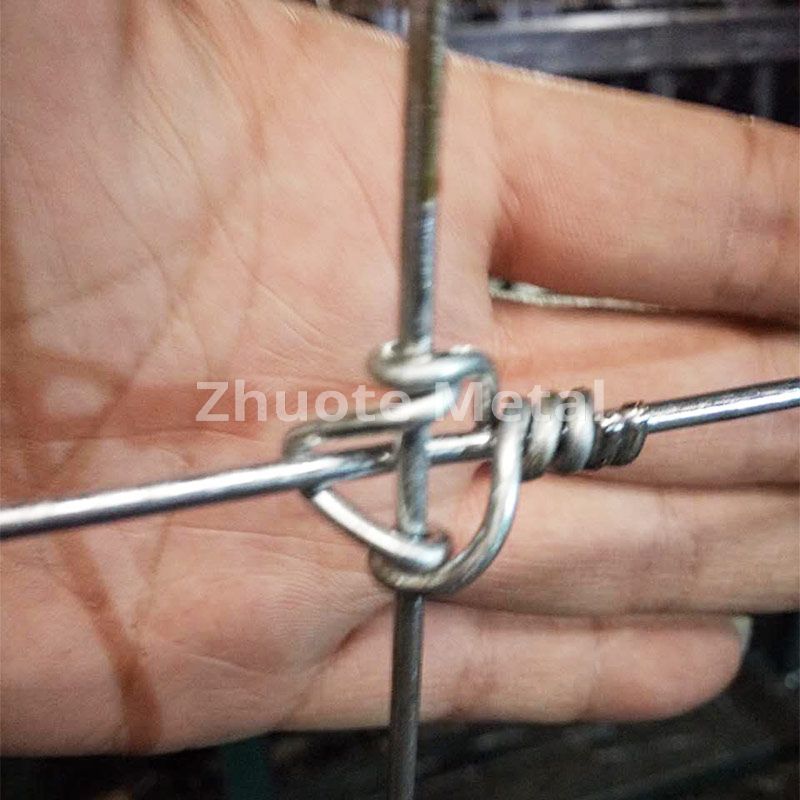

1. Hinged knot field fence
2. Fixed knot field fence
Steel wire with high strength, with zinc coating layer or without.
3. Field fence material:
a) Electro galvazied iron wire
b) Hot dipped galvazied iron wire
c) High Tensile steel wire
4. Field fence common specification:
Wire Gauge: 1.9-3.5mm
Edge wire diameter: 1.8-2.5mm
Horizontal wire diameter: 2.0-3.5mm
Vertical hole size: 15cm (5-60cm)
Aperture: 89-203mm
Hight size: 0.85-2.4m
Length: 10-300m
5. Field fence features:
It is simple in structure;
Easy maintenance;
Short installation period;
Easy for transport;
Application: Field fence is a kind of mesh used in cattle, goat, deer, and pig etc.
| Galvanized Kraal Network/Galvanized field fence | |
| Material | High tensile galvanized steel wireHigh carbon Hot-dip galvanized wireLow carbon Hot-dip galvanized wireLow carbon Electric galvanized wirePVC coated wire |
| Wire diameter | 1.5mm, 1.6mm, 1.7mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm |
| Top & Bottom wire | 2.0mm, 2.2mm, 2.5mm, 2.7mm, 3.0mm, 3.5mm, 4.0mm |
| Vertical spacing | 150mm/6 Inch, 300mm /12 Inch |
| No. of Horizontal wire | 7 – 23 |
| Height | 0.8m, 0.9m, 1.0m, 1.2m, 1.4m, 1.5m, etc. |
| Length | 50m/165ft , 100m/330ft |
| Roll diameter | 200mm – 250mm |
| Zinc coating | 20g/m2-330g/m2 |
Product Parameters
| Light Duty Fence | Middle Duty Fence | Heavy Duty Fence | Extra heavy duty fence | |||||
| Wire diameter (mm) | Minimum tensile strength(N/mm2) | Wire diameter (mm) | Minimum tensile strength(N/mm2) | Wire diameter (mm) | Minimum tensile strength(N/mm2) | Wire diameter (mm) | Minimum tensile strength,(N/mm2) | |
| Top and bottom horizontal wire | 2.0 | 650 | 2.5 | 650 | 3.0 | 650 | 3.7 | 650 |
| Other horizontal wires and vertical wires | 1.6 | 450 | 2.0 | 450 | 2.5 | 400 | 3.0 | 400 |
| Hinge joint field fence Types | Fence height (mm) | Horizontal wires number | Distance between the vertical wires (mm) | mesh opening number - mesh height (mm) | Roll length (m) |
| 1050/13/15 | 1050 | 13 | 150 | 6-75, 6-100 | 50,100,150 |
| 1250/15/15 | 1250 | 15 | 150 | 6-75, 8-100 | |
| 1550/18/15 | 1550 | 18 | 150 | 6-75, 11-100 | |
| 1550/15/15 | 1550 | 15 | 150 | 11-100, 3-150 | |
| 1850/20/15 | 1850 | 20 | 150 | 6-75, 11-100, 2-150 | |
| 1850/16/15 | 1850 | 16 | 150 | 10-100, 3-150, 2-200 | |
| 1950/17/15 | 1950 | 17 | 150 | 11-100, 3-150, 2-200 | |
| 2000/21/15 | 2000 | 21 | 150 | 6-75, 11-100, 3-150 | |
| 2400/23/15 | 2400 | 23 | 150 | 6-75, 11-100, 3-150, 2-200 |
