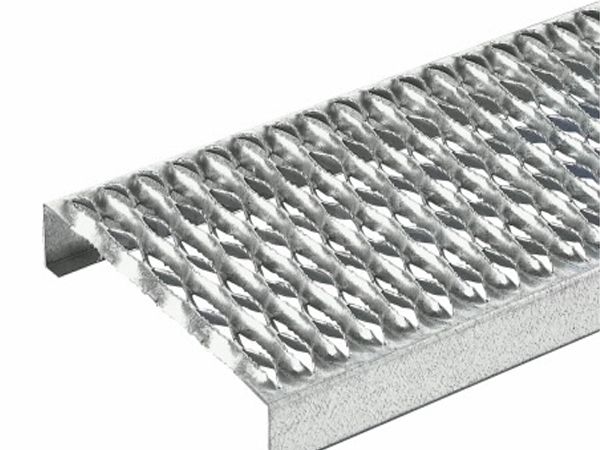

Grip Strut Safety Grating

Brand Name: zhuote

Place of Origin: HeBei,AnPing

Thickness: 2-10mm

Weaving: Stamping

Height: 20mm-50mm , customized

Raw material: Aluminium , Galvanized , Stainless steel-304 , Stainless steel-316

Type: serrated

Length: 1m-10m , customized

Application: walkways , floors , stair treads , exterior wall decoration , guardrail

After-sale Service: Online technical support

The product is made from a lightweight metal grating specifically designed for safety underfoot. The unique one-piece diamond shaped construction provides slip-resistance in all directions. GRIP STRUT is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris.

Grip Strut Safety Grating safety metal grating walkways meet OSHA requirements for toe boards on elevated structures.The serrated, open diamond matrix walking surface provides maximum slip resistance. Ideal for demanding industrial applications, Grip Strut Safety Grating stair treads are available with two nosing options, the standard side margin or optional cast abrasive nosing.Treads are available in steel, aluminum, or stainless steel, widths ranging from 4-3/4” to 11-3/4”.

Heavy Duty Grip Strut Safety Grating
The Heavy-Duty Grip Strut offers all the advantages of regular Grip Strut Safety Grating plus the capabilities for greater loads and/or longer spans to cover larger areas. Heavy Duty Grip Strut Safety Grating walkways are ideal for process plants, refineries, grain elevators, conveyor walkways, under bridge inspection walkways. They have been used in manufacturing facilities and extremely harsh environment like papermills.
Compared to Bar grating, Heavy Duty Grip Strut Safety Grating comes in 24 ft. lengths, required less support structure which also leads to less labor to install. It typically has a shorter lead time than bar grating as well.

Stair Tread Ladder Rungs Reconditioning Material
Arlo offers a full range of standard and non-standard Stair Tread products from Grip Strut Safety Grating, Heavy Duty Grip Strut Safety Grating, Perf-O Grip, Traction Tread™, and Grate-Lock. Products will be offered with or without abrasive nosing. Reconditioning material is offered as an economical method of resurfacing worn and unsafe floors. Downturned edges allow the grating to lie flat and secure over existing flooring. Arlo offers a large variety of ladder rungs for use in different environments and industries. Grip Strut Safety Grating One Diamond Ladder Rungs are ideal in environments where safe footing is hard to come by. Grip Strut Ladder Rungs ensure maximum slip resistance and safe footing. Traction Tread Ladder Rungs are ideal for use in hand-over-hand ladder applications where safe footing is also required.

Typical Uses
Catwalks
Stair treads
Vehicle steps
Work platforms
Rooftop walkways
Transportation servicing areas
Walkways
work platforms
industrial flooring
balconies
storage areas
