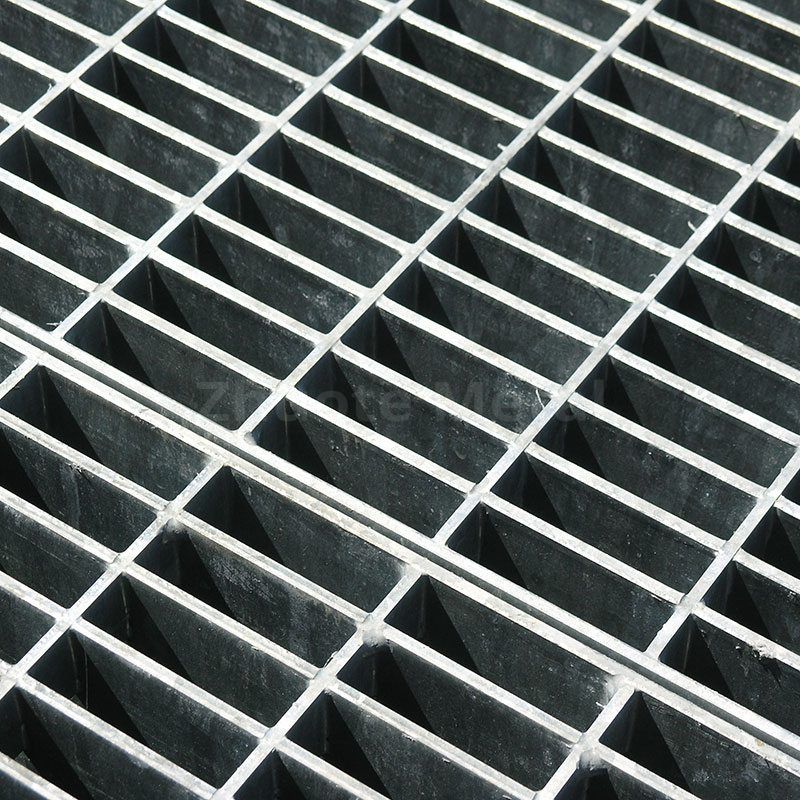

Heavy duty steel grating

The heavy-duty steel grating is made of thicker (6mm, 8mm, 10mm) and wider flat bar as the load-bearing flat steel (60mm, 70mm, 80mm, 90mm, 100mm). It is a steel grating product specially designed for heavy load occasions. Heavy duty steel grating supplies far greater strength-to-weight ratio than other flooring materials to bear the heavy load such as forklift or truck traffic. They are also available in either smooth top or serrated for anti-slip.

Because these gratings are typically in more severe service, it is highly recommended that all open ends be trim or load banded. The welded band bar helps distribute these loads and minimizes potential panel distortion.

heavy-duty steel grating Lighter weight and high strength.
Carbon steel, galvanized steel or stainless-steel material options.
Ideal for both commercial and industrial applications.
Wide range of configurations for choice.
Special discount for large orders.
Project reference can be supplied for your bid.
ISO Certificated factory.
CAD or 3D drawing can be supplied for your design and construction.

Heavy duty steel grating common specification:

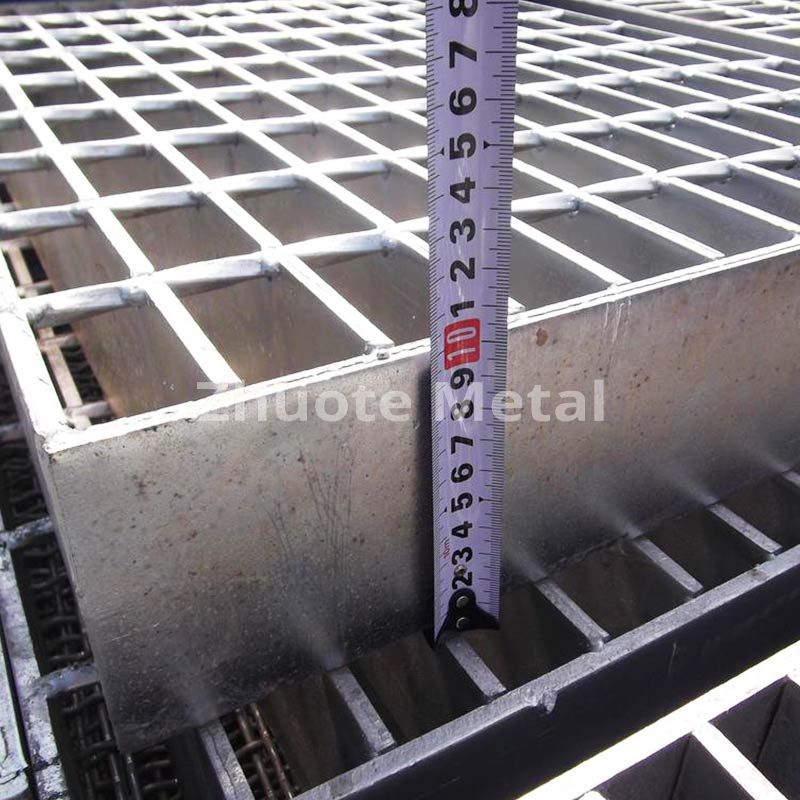

1. Flat bar: The width of bearing flat bar is above of 65mm, thickness of flat bar is above of 6mm.
2. Cross bar: Usually use diameter of 8mm, 10mm, or 12mm square twist bar.
3. Spacing of bearing bar usually is 40mm, or others.

Carbon steel, galvanized steel, stainless steel or painted surfaces for different applications.
Ideal for forklifts and trucks through traffic.
Different bearing bars and cross bars spacing for choice.
Serrated surface can be supplied for anti-slipping

heavy-duty steel grating considered as the ideal grating in parking lots, loading docks, ramps, airfields, truck and bus terminals, subway and tunnel ventilation grilles and inlet covers. Our steel grating large welding machine can produce the maximum width of flat bar is 100mm, the maximum thickness is 10mm.
