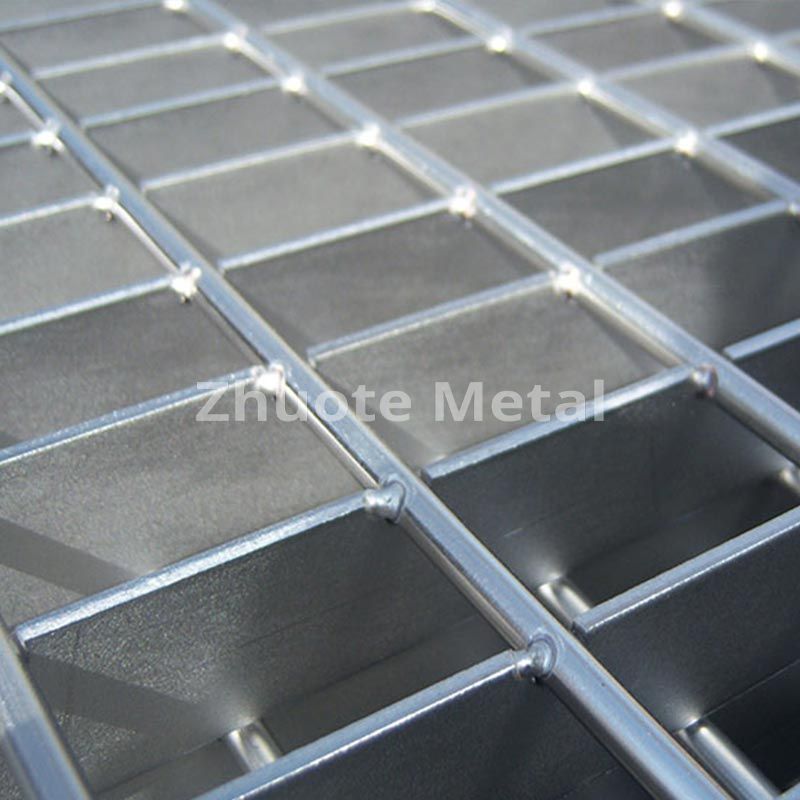

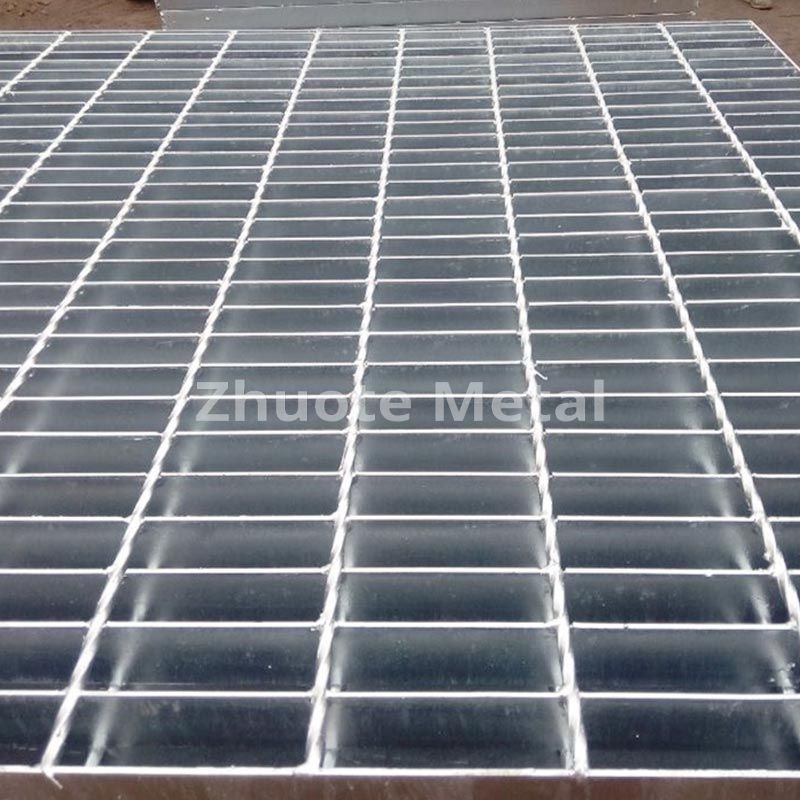

Plain steel grating is made by flat bar and square twist bar or fullly flat bar. We can weld common plain steel grating, press-locked steel grating, I bar grating, we can also produce stainless steel grating, aluminum grating.
The plain steel grating common specification is as follow:
| Parameters | Data |
| Bear Bar Type | Flat Bar, I-Bar. |
| Bearing Bar Size | 20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.. |
| Bearing Bar Spacing | 20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier. |
| Cross Bar Type | Twisted Steel Rod, Flat Bar |
| Cross Bar Size | 3mm, 4mm, 5mm ,6mm or thicker |
| Cross Bar Spacing | 50mm or 100mm |
| Bearing Bar Length | Customerized from 1000mm to 6000mm or more |
| Cross Bar Length | Under 1200mm |
| Material Grade | Mild Steel(Q235B), Stainless Steel 304 or 316, etc. |
| Treatment Available | Hot dipped Galvanized, Anodized, Polished and Powder Coated |
If we order plain steel grating, we need provide these datas, as flat bar width, thickness, pitch of bearing bar and cross bar. As the following picture:
